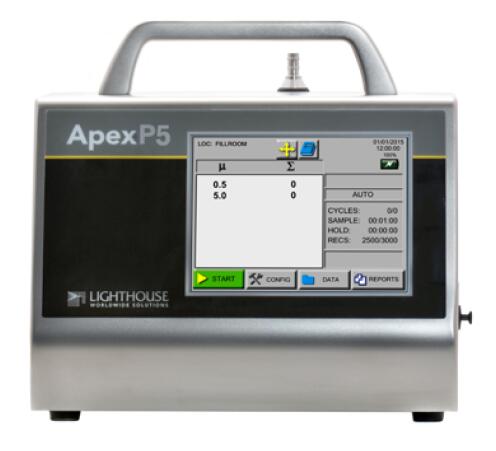

ApexP5尘埃粒子计数器技术规格
特征ApexP5
最小粒径0.5 μm
标准粒径0.5, 5.0 μm
可选粒径0.5, 1.0, 5.0, 10.0 μm
其他可选粒径0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm
流量1 CFM (28.3 LPM)
通讯Ethernet and Serial
通讯模式TCP, RTU and ASCII
接口Ethernet, RS485 (RJ-45), USB
触摸屏5.7 inch (14.5 cm) color touch screen
数据存储3,000 data records
位置标签200 Location labels
自我诊断Laser: power supply, laser current, laser power; Photo Detector: power supply, back ground voltage, detector health
网络服务Remote access via web browser
声音报警Yes
报告ISO 14644-1:2015, ISO 14644-1:1999, EU GMP Annex 1, FS-209E
安全数据传输Designed for 21 CFR Part 11 compliance
语言English, Spanish, German, French, Italian, Russian, Simplified Chinese, Japanese, Korean
尺寸9.00 x 6.69 x 8.46” (22.86 x 16.99 x 21.48 cm)
重量10.9 lbs (4.76 kg)
外壳304不锈钢
电源24 VDC, 5 amp max draw
电池续航4小时, 3小时连续使用
真空泵PID controlled vacuum pump
空气样本输出Internally filtered to HEPA standard (>99.97% @ 0.3μm)
采样模式Automatic, manual, beep, concentration
校准Meets ISO 21501-4 calibration using NIST traceable PSL spheres.
激光源Laser diode
零计数水平<1 count / 5 minutes per ISO 21501-4
浓度限制1,000,000 particles/ft3 (34,300,000/m3) @ 10% coincidence loss suitable for ISO classes 1 - 8 cleanrooms.
计数效率100% for particles >1.5 x first channel particle size
附件Power supply 24 VDC, power chord, tubing, iso kinetic probe, Opeating Manual on USB key, carry case
可选附件USB printer, additional tubing, cleanroom tripod, iso kinetic probe, LMS Express RT software
