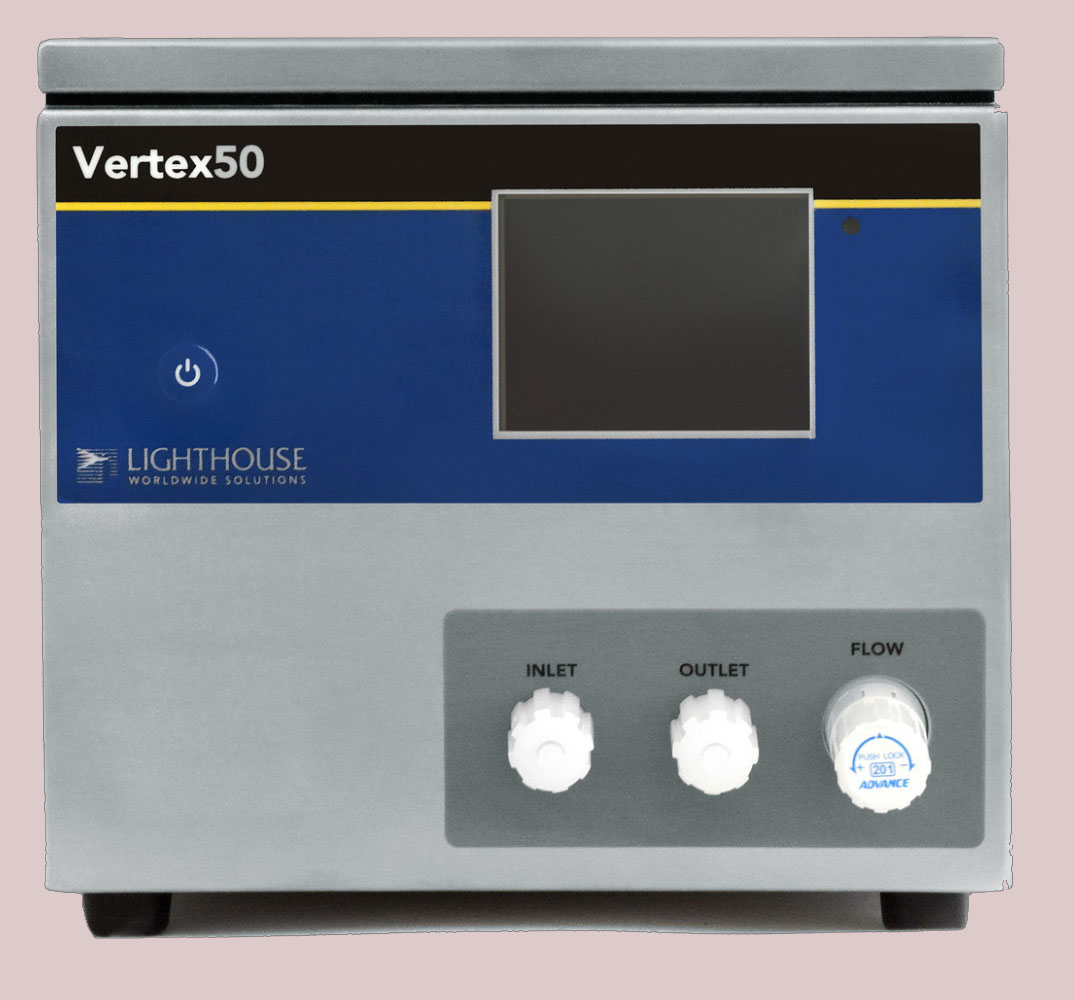

lighthouse vertex50液体粒子计数器技术规格
粒径范围：50 - 200 nm
粒径通道：4
标准粒径：50 nm, 100 nm, 150 nm, 200 nm
流量：100 mL/min
采样量：5.0 mL/min
零计数水平：≤ 20 count/L
激光源：固态激光器
校准：NIST traceable
通讯模式：Ethernet, Serial RS-485, 4-20mA
显示屏：TFT彩色触摸屏
浓度限制：10000个/毫升@10%重叠损失
外壳：316L不锈钢
样品输入/输出接口：1/4” FlaretekTM
操作环境：50°F to 104°F (10°C to 40°C), 20% to 95% non-condensing
存储环境：14°F to 122°F (-10°C to 50°C), up to 98% non-condensing
采样温度：50°F to 122°F (10°C to 50°C)
采样压力：20 PSI to 72 PSI (138 kPa to 496 kPa)
受湿表面材料：Quartz, PFA, Kalrez, PTFE
通讯：MODBUS TCP, MODBUS Serial, 4-20mA
电源：External Supply: Rated input 120-240V AC 50/60Hz, 0.7A - 1.4A. Rated Output: 24V DC, 5A
尺寸：9.0”(w) x 13.4”(d) x 8.4”(h) [22.9 x 34.0 x 21.3 cm]
重量：13.5 lbs (6.1 kg)
标配：24V power adapter, power cord (US/UK/EU/CN), 1.8m USB-RS485 serial cable with industrial connector, 25’ ethernet cable with industrial connector, USB flash drive with Operators Manual, 2 x 10 foot sample inlet and outlet tubes (with flared tips and lock nuts), flow cell cleaning kit, calibration certificate and carrying case.
选配：Printed operating manual; additional tubing, additional serial or ethernet cables with industrial connector, flow cell cleaning kit.
